[CNC] 비트 관련 용어 정리 @Snapmaker

2026.06.03



Original은 비트 3.175mm(1/8") 샹크만 있다.

샹크(Shank): 비트를 잡는 몸통

콜릿(Collet): 샹크를 잡는 부품

2.0은 ER11 콜릿 교체 가능





---

2.0은 자세하게 나와 있다.

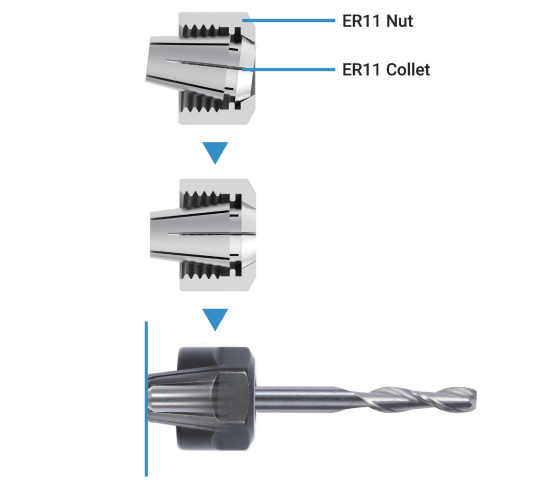

3.1 Tool Overview Your CNC carver comes with an ER11-A 1/8” collet and collet nut, used to secure the CNC bits into the spindle. The collet supports a variety of CNC bits with shank diameters ranging from 1 mm to 7 mm. The two CNC bits provided in the box, flat end mill (1.5 mm) and ball end mill, are of the same shank diameter—3.175 mm. Should you want to use other CNC bits, you can buy them from Snapmaker's online store. Should you want to use bits with different shank diameters, you can use other ER11 collets with different clamping bores ranging from 1 mm to 7 mm. But ensure that it is an ER11 collet; otherwise, your collet will not fit the ER11 nut.



Snapmaker2 설명서
