[FPGA] ZYBO Z7: VPG

2025.03.12

---

---

---

---

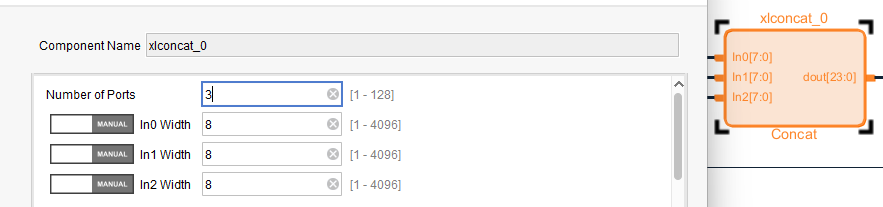

## This file is a general .xdc for the Zybo Z7 Rev. B
## It is compatible with the Zybo Z7-20 and Zybo Z7-10
## To use it in a project:
## - uncomment the lines corresponding to used pins
## - rename the used ports (in each line, after get_ports) according to the top level signal names in the project

##Clock signal
set_property -dict { PACKAGE_PIN K17   IOSTANDARD LVCMOS33 } [get_ports { sysclk }]; #IO_L12P_T1_MRCC_35 Sch=sysclk
create_clock -add -name sys_clk_pin -period 8.00 -waveform {0 4} [get_ports { sysclk }];


##Switches
set_property -dict { PACKAGE_PIN G15   IOSTANDARD LVCMOS33 } [get_ports { sw[0] }]; #IO_L19N_T3_VREF_35 Sch=sw[0]
#set_property -dict { PACKAGE_PIN P15   IOSTANDARD LVCMOS33 } [get_ports { sw[1] }]; #IO_L24P_T3_34 Sch=sw[1]
#set_property -dict { PACKAGE_PIN W13   IOSTANDARD LVCMOS33 } [get_ports { sw[2] }]; #IO_L4N_T0_34 Sch=sw[2]
#set_property -dict { PACKAGE_PIN T16   IOSTANDARD LVCMOS33 } [get_ports { sw[3] }]; #IO_L9P_T1_DQS_34 Sch=sw[3]

#System Reset
set_property -dict { PACKAGE_PIN K18   IOSTANDARD LVCMOS33 } [get_ports { async_reset }]; #IO_L12N_T1_MRCC_35 Sch=btn[0]
set_false_path -from [get_ports async_reset]

##Buttons
#set_property -dict { PACKAGE_PIN K18   IOSTANDARD LVCMOS33 } [get_ports { btn[0] }]; #IO_L12N_T1_MRCC_35 Sch=btn[0]
#set_property -dict { PACKAGE_PIN P16   IOSTANDARD LVCMOS33 } [get_ports { btn[1] }]; #IO_L24N_T3_34 Sch=btn[1]
#set_property -dict { PACKAGE_PIN K19   IOSTANDARD LVCMOS33 } [get_ports { btn[2] }]; #IO_L10P_T1_AD11P_35 Sch=btn[2]
#set_property -dict { PACKAGE_PIN Y16   IOSTANDARD LVCMOS33 } [get_ports { btn[3] }]; #IO_L7P_T1_34 Sch=btn[3]


##LEDs
set_property -dict { PACKAGE_PIN M14   IOSTANDARD LVCMOS33 } [get_ports { LD0 }]; #IO_L23P_T3_35 Sch=led[0]

#HDMI RX
set_property -dict { PACKAGE_PIN W18   IOSTANDARD LVCMOS33 } [get_ports { hdmi_in_ddc_scl_io }]; #IO_L22P_T3_34 Sch=hdmi_rx_scl
set_property -dict { PACKAGE_PIN Y19   IOSTANDARD LVCMOS33 } [get_ports { hdmi_in_ddc_sda_io }]; #IO_L17N_T2_34 Sch=hdmi_rx_sda

set_property -dict { PACKAGE_PIN U19   IOSTANDARD TMDS_33   } [get_ports { hdmi_in_clk_n }]; #IO_L12N_T1_MRCC_34 Sch=hdmi_rx_clk_n
set_property -dict { PACKAGE_PIN U18   IOSTANDARD TMDS_33   } [get_ports { hdmi_in_clk_p }]; #IO_L12P_T1_MRCC_34 Sch=hdmi_rx_clk_p
set_property -dict { PACKAGE_PIN W20   IOSTANDARD TMDS_33   } [get_ports { hdmi_in_data_n[0] }]; #IO_L16N_T2_34 Sch=hdmi_rx_n[0]
set_property -dict { PACKAGE_PIN V20   IOSTANDARD TMDS_33   } [get_ports { hdmi_in_data_p[0] }]; #IO_L16P_T2_34 Sch=hdmi_rx_p[0]
set_property -dict { PACKAGE_PIN U20   IOSTANDARD TMDS_33   } [get_ports { hdmi_in_data_n[1] }]; #IO_L15N_T2_DQS_34 Sch=hdmi_rx_n[1]
set_property -dict { PACKAGE_PIN T20   IOSTANDARD TMDS_33   } [get_ports { hdmi_in_data_p[1] }]; #IO_L15P_T2_DQS_34 Sch=hdmi_rx_p[1]
set_property -dict { PACKAGE_PIN P20   IOSTANDARD TMDS_33   } [get_ports { hdmi_in_data_n[2] }]; #IO_L14N_T2_SRCC_34 Sch=hdmi_rx_n[2]
set_property -dict { PACKAGE_PIN N20   IOSTANDARD TMDS_33   } [get_ports { hdmi_in_data_p[2] }]; #IO_L14P_T2_SRCC_34 Sch=hdmi_rx_p[2]

set_property -dict { PACKAGE_PIN W19   IOSTANDARD LVCMOS33 } [get_ports { hdmi_in_hpd }]; #IO_L22N_T3_34 Sch=hdmi_rx_hpd

#HDMI TX
#set_property -dict { PACKAGE_PIN G17   IOSTANDARD LVCMOS33 } [get_ports { hdmi_out_ddc_scl_io }]; #IO_L16P_T2_35 Sch=hdmi_tx_scl
#set_property -dict { PACKAGE_PIN G18   IOSTANDARD LVCMOS33 } [get_ports { hdmi_out_ddc_sda_io }]; #IO_L16N_T2_35 Sch=hdmi_tx_sda

set_property -dict { PACKAGE_PIN H17   IOSTANDARD TMDS_33  } [get_ports { hdmi_out_clk_n }]; #IO_L13N_T2_MRCC_35 Sch=hdmi_tx_clk_n
set_property -dict { PACKAGE_PIN H16   IOSTANDARD TMDS_33  } [get_ports { hdmi_out_clk_p }]; #IO_L13P_T2_MRCC_35 Sch=hdmi_tx_clk_p
set_property -dict { PACKAGE_PIN D20   IOSTANDARD TMDS_33  } [get_ports { hdmi_out_data_n[0]  }]; #IO_L4N_T0_35 Sch=hdmi_tx_n[0]
set_property -dict { PACKAGE_PIN D19   IOSTANDARD TMDS_33  } [get_ports { hdmi_out_data_p[0]  }]; #IO_L4P_T0_35 Sch=hdmi_tx_p[0]
set_property -dict { PACKAGE_PIN B20   IOSTANDARD TMDS_33  } [get_ports { hdmi_out_data_n[1]  }]; #IO_L1N_T0_AD0N_35 Sch=hdmi_tx_n[1]
set_property -dict { PACKAGE_PIN C20   IOSTANDARD TMDS_33  } [get_ports { hdmi_out_data_p[1]  }]; #IO_L1P_T0_AD0P_35 Sch=hdmi_tx_p[1]
set_property -dict { PACKAGE_PIN A20   IOSTANDARD TMDS_33  } [get_ports { hdmi_out_data_n[2]  }]; #IO_L2N_T0_AD8N_35 Sch=hdmi_tx_n[2]
set_property -dict { PACKAGE_PIN B19   IOSTANDARD TMDS_33  } [get_ports { hdmi_out_data_p[2]  }]; #IO_L2P_T0_AD8P_35 Sch=hdmi_tx_p[2]
