[TTS-25] 3.5" Touch LCD 추가

블랙오닉스 2024. 5. 19. 23:21

2024.05.19

레이저 조각기는 LCD가 없어서 PC와 연결해서 쓰거나,

WiFi로 접속해야 하는데 GUI가 구리다.

주문한 터치 LCD를 연결하기 위해 보드, 펌웨어를 찾아 보았으나 쉽지않다.

Board: MKS LTS v1.1 (ESP32-WROO???)

X, Y1/Y2, 12/24V 출력, TTL 출력, Probe, X,Y,Z EndStop, EXT1/2

LaserGRBL 소스를 찾기 쉽지 않고,

Marlin에서는 마땅한 보드가 없다.

LaserGRBL은 PC 프로그램이고

https://lasergrbl.com/download/

Download – LaserGRBL

Last stable version: latest All versions: github.com/arkypita/LaserGRBL Also source code of LaserGRBL is available under GPLv3 license. LaserGRBL is free and opensource, but it’s development require time and money. Do you like LaserGRBL? Support deve

lasergrbl.com

GRBL에서 firmware를 찾으면

https://github.com/bdring/Grbl_Esp32

GitHub - bdring/Grbl_Esp32: A port of Grbl CNC Firmware for ESP32

A port of Grbl CNC Firmware for ESP32. Contribute to bdring/Grbl_Esp32 development by creating an account on GitHub.

github.com

일단 Arduino IDE같은데서 MKS LTS 보드 관련 자료가 있는지 확인해 봐야 겠다.

아니면 Schematic이나.

ESP32로 자작하는 국내 블로그

https://blog.naver.com/elecraft/222299996938

ESP32 Grbl 프로토 타입 보드 제작

ESP32 Grbl 프로토 타입 보드 제작 5년이 지난 2016년 3월에 처음 블로그에 Grbl 보드 관련 글( https...

blog.naver.com

https://blog.naver.com/cimygy/222381291551

ESP32 GRBL #1 컨셉

자작 CNC에 사용하기 위해 여러가지 CNC Controller들을 시험하고 만들어 보고 있습니다. 대표적인 ...

blog.naver.com

GitHub - makerbase-mks/MKS-DLC32: MKS DLC32 motherboard kit, which is an offline engraving master control kit developed for desktop engraving machines. The hardware is equipped with a 32-bit high-speed ESP32 module, integrated WIFI function, and directly drives a 3.5-inch touch color screen; it can realize fast engraving and WEB web pages. Control, mobile phone APP control and other functions.

GitHub - makerbase-mks/MKS-DLC32: MKS DLC32 motherboard kit, which is an offline engraving master control kit developed for desk

MKS DLC32 motherboard kit, which is an offline engraving master control kit developed for desktop engraving machines. The hardware is equipped with a 32-bit high-speed ESP32 module, integrated WIFI...

github.com

MKS LTS V1.1 Controller Board GRBL CNC Shield Controller V1.1 Motherboard for TT20 TT50 Engraver CNC Laser Engraving Parts: Amazon.de: Business, Industry & Science

MKS LTS V1.1 Controller Board GRBL CNC Shield Controller V1.1 Motherboard for TT20 TT50 Graveur CNC Lasergravurteile (Color : Wi

MKS LTS V1.1 Controller Board GRBL CNC Shield Controller V1.1 Motherboard for TT20 TT50 Engraver CNC Laser Engraving Parts

www.amazon.de

2024.05.20

TTS-55 & LCD 로 검색하니 자료가 조금 나온다.

https://geeks-at-large.com/support/twotree-tts-series-lcd-limit-swtich-kit-support/

TwoTree TTS Series Limit Kit Support page

Ok, friends, it's time to upgrade your TwoTrees TTS Series machines to add limit switches. This should be a pretty painless process, taking less than 15min to complete.

geeks-at-large.com

Firmware 수정없이 Switch와 LCD를 연결만 하면 된다고 한다.

LCD는 EXP1/2라고 하는데 남는 Text LCD 연결 시도 예정

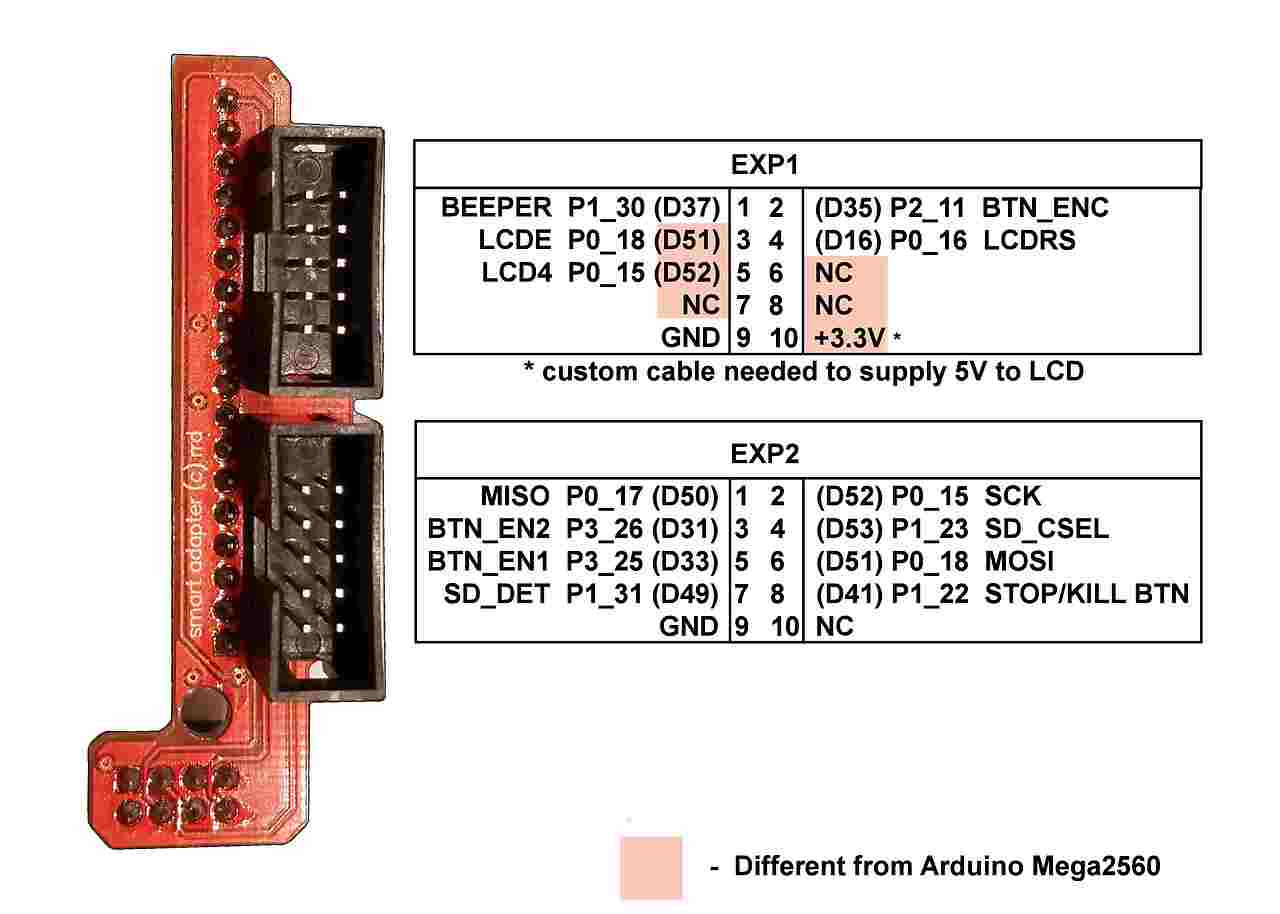

LCD Pin Map

https://github.com/makerbase-mks/MKS-TFT-Hardware/blob/master/MKS%20TS35/MKS%20TS35%20V2.0_001/MKS%20TS35%20V2.0_001%20SCH.pdf

MKS-TFT-Hardware/MKS TS35/MKS TS35 V2.0_001/MKS TS35 V2.0_001 SCH.pdf at master · makerbase-mks/MKS-TFT-Hardware

Inculde MKS TFT24/28/32/35/70； MKS TS35/TS35-E3 Hardware - makerbase-mks/MKS-TFT-Hardware

github.com
